Stat 210 Final Project

Load Libraries

library(ggrepel)
library(ggpmisc)
library(tidyverse)
library(vegan)

Loading in CSV’s

Fish <- read.csv("Group_3_Mastersheet.csv")

Cleaning Data

Fish_Cleaned <- Fish %>%
  select(Location, Species, Observed_Behavior, Adjacent_Habitat) %>%
  mutate(Location = recode(Location, "McAbee" = "Mcabee"),
         Species = recode(Species, "Black_Eyed_Goby" = "Black_Eyed_Goby"))

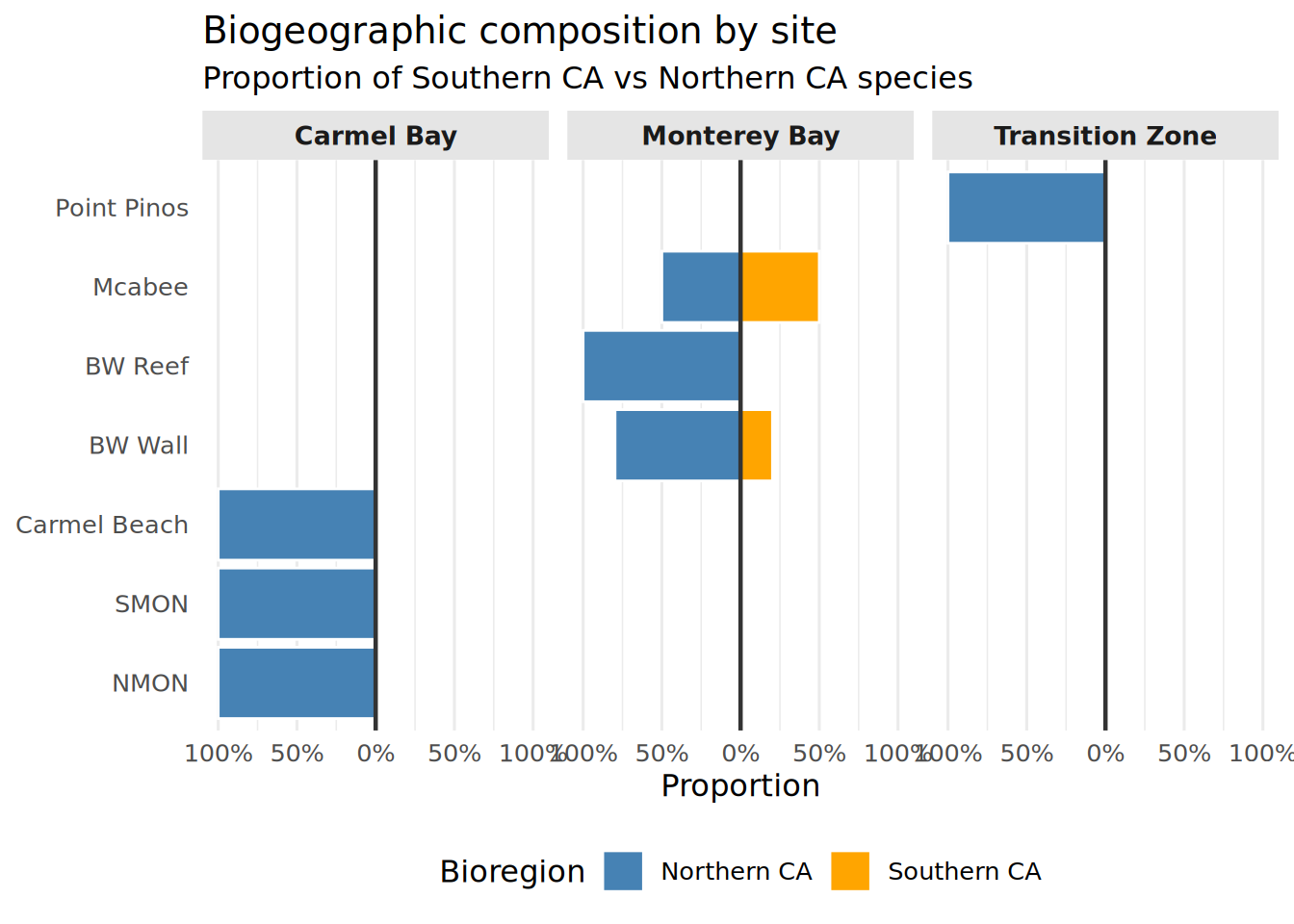

# added Northern California/Southern California
Fish_Cleaned_2 <- Fish_Cleaned %>%
  filter(!str_detect(Species, "YOY|UFO")) %>%
  mutate(Region = case_when(
    Location %in% c("NMON", "SMON", "Carmel_Beach") ~ "Carmel_Bay",
    Location %in% c("BW_Wall", "BW_Reef", "Mcabee")  ~ "Monterey_Bay",
    Location == "Point_Pinos"                         ~ "Transition_Zone",
    TRUE ~ NA_character_),
  Species = recode(Species, "Black_Eyed_Goby" = "Black_Eyed_Goby")
  )

Diversity by Site

# Shannon diversity by individual site

# Build a species x site abundance matrix
species_matrix <- Fish_Cleaned_2 %>%
  group_by(Location, Species) %>%
  summarise(count = n(), .groups = "drop") %>%
  pivot_wider(names_from = Species, values_from = count, values_fill = 0) %>%
  column_to_rownames("Location")

# Calculate Shannon H' per site
shannon <- diversity(species_matrix, index = "shannon")

shannon_df <- shannon %>%
  as.data.frame() %>%
  rownames_to_column("Location") %>%
  rename(Shannon = ".") %>%
  left_join(
    Fish_Cleaned_2 %>% distinct(Location, Region),
    by = "Location"
  )


print(shannon_df)

      Location   Shannon          Region
1      BW_Reef 1.1481647    Monterey_Bay
2      BW_Wall 2.3506162    Monterey_Bay
3 Carmel_Beach 0.6931472      Carmel_Bay
4       Mcabee 0.9976149    Monterey_Bay
5         NMON 1.1285963      Carmel_Bay
6  Point_Pinos 1.0121571 Transition_Zone
7         SMON 1.0114043      Carmel_Bay

Diversity by Region

# Build species x region abundance matrix
Region_Matrix <- Fish_Cleaned_2 %>%
  group_by(Region, Species) %>%
  summarise(count = n(), .groups = "drop") %>%
  pivot_wider(names_from = Species, values_from = count, values_fill = 0) %>%
  column_to_rownames("Region")

# Calculate Shannon diversity per region
shannon_region <- diversity(Region_Matrix, index = "shannon")

# Convert to tidy dataframe
shannon_df <- shannon_df %>%
  mutate(Location = factor(Location, levels = c(
    "BW_Wall", "BW_Reef", "Mcabee",      # Monterey Bay
    "Point_Pinos",                         # Transition Zone
    "NMON", "SMON", "Carmel_Beach"        # Carmel Bay
  )),
  Region = factor(Region, levels = c("Monterey_Bay", "Transition_Zone", "Carmel_Bay")))

# View results
print(shannon_df)

      Location   Shannon          Region
1      BW_Reef 1.1481647    Monterey_Bay
2      BW_Wall 2.3506162    Monterey_Bay
3 Carmel_Beach 0.6931472      Carmel_Bay
4       Mcabee 0.9976149    Monterey_Bay
5         NMON 1.1285963      Carmel_Bay
6  Point_Pinos 1.0121571 Transition_Zone
7         SMON 1.0114043      Carmel_Bay

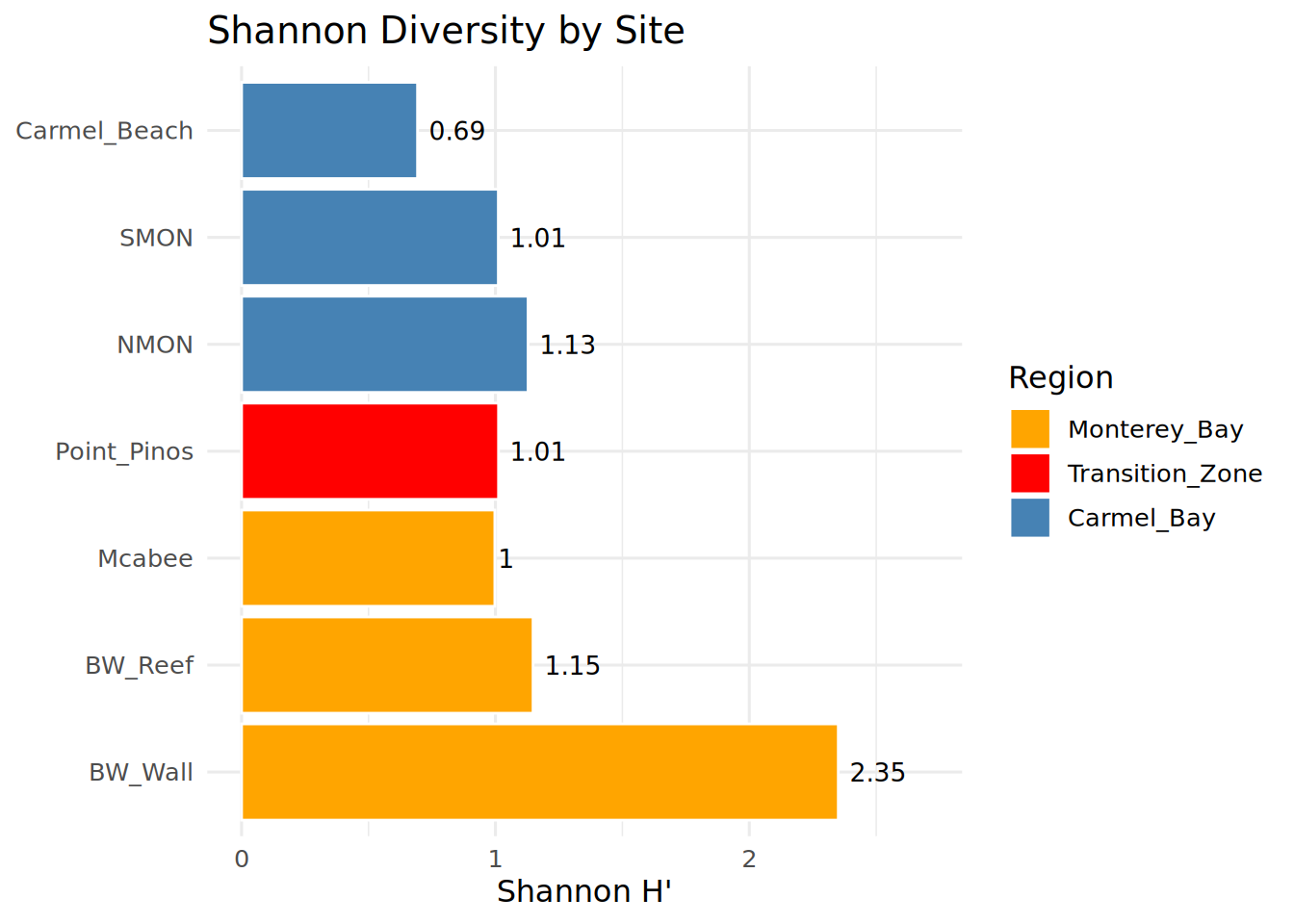

Shannon Diversity by Site

ggplot(shannon_df, aes(x = Location, y = Shannon, fill = Region)) +
  geom_col(color = "white", linewidth = 0.5) +
  geom_text(aes(label = round(Shannon, 2)), hjust = -0.2, size = 3.5) +
  scale_fill_manual(values = c(
    "Carmel_Bay"      = "steelblue",
    "Monterey_Bay"    = "orange",
    "Transition_Zone" = "red"
  )) +
  coord_flip() +
  theme_minimal(base_size = 12) +
  theme(legend.position = "right") +
  expand_limits(y = max(shannon_df$Shannon) * 1.15) +
  labs(
    title = "Shannon Diversity by Site",
    x = NULL,
    y = "Shannon H'",
    fill = "Region"
  )

Species Richness

# Richness per site
richness_site <- Fish_Cleaned_2 %>%
  group_by(Location, Region) %>%
  summarise(Richness = n_distinct(Species), .groups = "drop")

# Richness per region
richness_region <- Fish_Cleaned_2 %>%
  group_by(Region) %>%
  summarise(Richness = n_distinct(Species), .groups = "drop")

# View results
print(richness_site)

# A tibble: 7 × 3
  Location     Region          Richness
  <chr>        <chr>              <int>
1 BW_Reef      Monterey_Bay           6
2 BW_Wall      Monterey_Bay          17
3 Carmel_Beach Carmel_Bay             2
4 Mcabee       Monterey_Bay           5
5 NMON         Carmel_Bay             5
6 Point_Pinos  Transition_Zone        5
7 SMON         Carmel_Bay             3

print(richness_region)

# A tibble: 3 × 2
  Region          Richness
  <chr>              <int>
1 Carmel_Bay             9
2 Monterey_Bay          19
3 Transition_Zone        5

Diversity Dataframe

diversity_summary <- shannon_df %>%
  left_join(richness_site, by = c("Location", "Region"))

print(diversity_summary)

      Location   Shannon          Region Richness
1      BW_Reef 1.1481647    Monterey_Bay        6
2      BW_Wall 2.3506162    Monterey_Bay       17
3 Carmel_Beach 0.6931472      Carmel_Bay        2
4       Mcabee 0.9976149    Monterey_Bay        5
5         NMON 1.1285963      Carmel_Bay        5
6  Point_Pinos 1.0121571 Transition_Zone        5
7         SMON 1.0114043      Carmel_Bay        3

Data Cleaning For Behavior Associations

# Remove YOY, UFO, and any blank/NA entries
Fish_Cleaned_3 <- Fish_Cleaned_2 %>%
  filter(!str_detect(Species, "YOY|UFO")) %>%
  filter(Species != "" & !is.na(Species)) %>%
  filter(Observed_Behavior != "" & !is.na(Observed_Behavior)) %>%
  mutate(Species = recode(Species, "Black_Eyed_Gobeye" = "Black_Eyed_Goby"))

# Check what you're working with
unique(Fish_Cleaned_3$Species)

 [1] "Bocaccio"            "Blue_Rockfish"       "Pile_Perch"
 [4] "Rockfish"            "Olive_Rockfish"      "Perch"
 [7] "Kelp_Perch"          "Painted_Greenling"   "Yellowtail_Rockfish"
[10] "Kelp_Greenling"      "Rubberlip_Perch"     "Kelp_Bass"
[13] "CA_Sheephead_F"      "Black_Eyed_Goby"     "Halfmoon"
[16] "Opaleye"             "Blacksmith"          "Kelp_Rockfish"
[19] "Lingcod"             "Black_Perch"         "Striped_Perch"
[22] "Senorita"            "Copper_Rockfish"

unique(Fish_Cleaned_3$Observed_Behavior)

[1] "Swimming"        "Holding_Station"

Behavior Associations

# Behavior x Species
behavior_species <- Fish_Cleaned_3 %>%
  count(Species, Observed_Behavior) %>%
  pivot_wider(names_from = Observed_Behavior, values_from = n, values_fill = 0) %>%
  column_to_rownames("Species")

chisq_species <- chisq.test(behavior_species)

Warning in chisq.test(behavior_species): Chi-squared approximation may be
incorrect

print(chisq_species)

    Pearson's Chi-squared test

data:  behavior_species
X-squared = 81.097, df = 22, p-value = 1.068e-08

fisher_species <- fisher.test(behavior_species, simulate.p.value = TRUE, B = 10000)
print(fisher_species)

    Fisher's Exact Test for Count Data with simulated p-value (based on
    10000 replicates)

data:  behavior_species
p-value = 9.999e-05
alternative hypothesis: two.sided

Behavior x Location

behavior_location <- Fish_Cleaned_3 %>%
  count(Location, Observed_Behavior) %>%
  pivot_wider(names_from = Observed_Behavior, values_from = n, values_fill = 0) %>%
  column_to_rownames("Location")

chisq_location <- chisq.test(behavior_location)

Warning in chisq.test(behavior_location): Chi-squared approximation may be
incorrect

fisher_location <- fisher.test(behavior_location, simulate.p.value = TRUE, B = 10000)

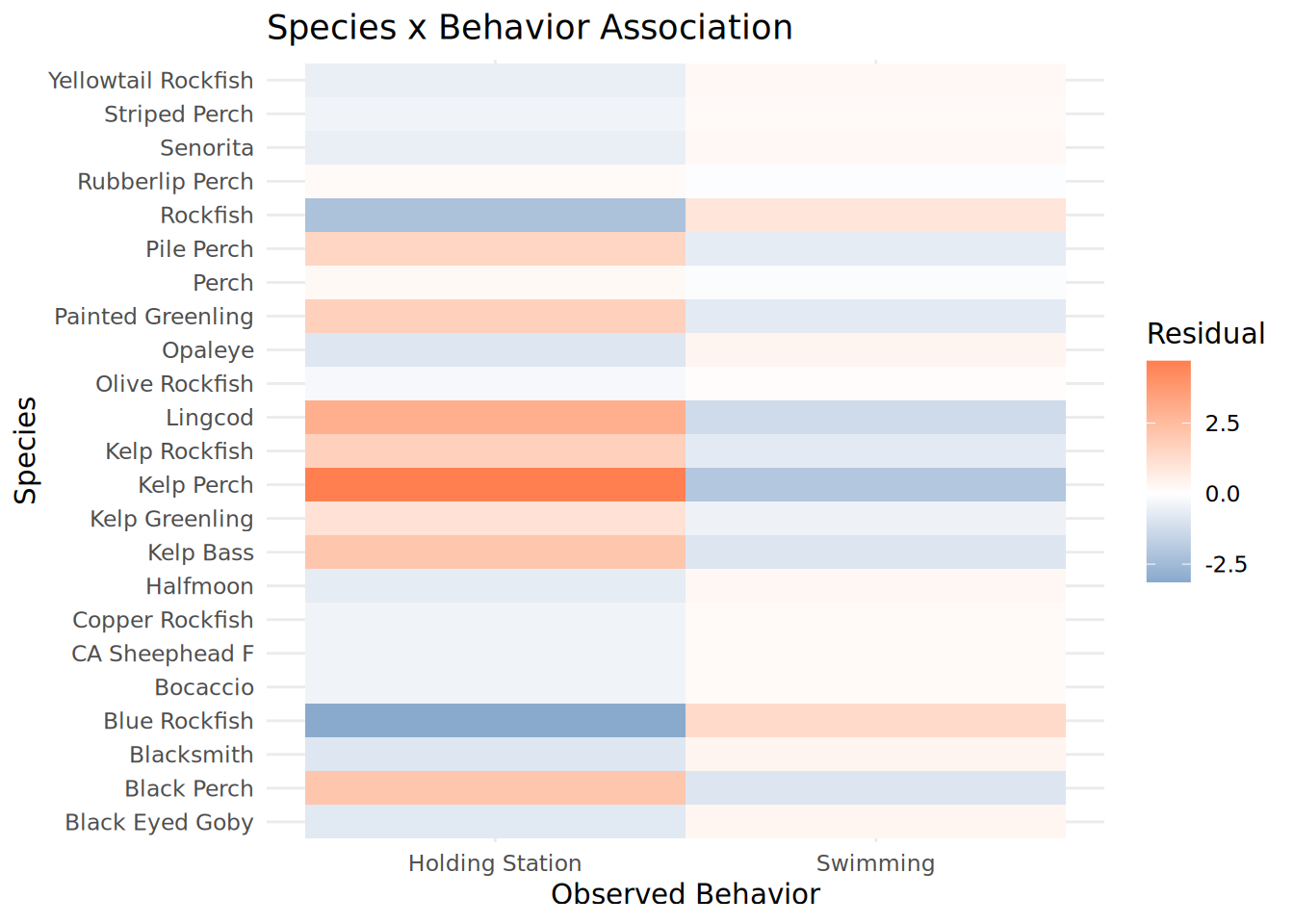

Species x Behavior Heatmap

Species_Behavior_Heatmap <- chisq_species$residuals %>%
  as.data.frame() %>%
  rownames_to_column("Species") %>%
  pivot_longer(-Species, names_to = "Observed_Behavior", values_to = "Residual") %>%
   mutate(
    Species = str_replace_all(Species, "_", " "),
    Observed_Behavior = str_replace_all(Observed_Behavior, "_", " ")
  ) %>%
  ggplot(aes(x = Observed_Behavior, y = Species, fill = Residual)) +
  geom_tile() +
  scale_fill_gradient2(low = "steelblue", mid = "white", high = "coral", midpoint = 0) +
  theme_minimal() +
  labs(title = "Species x Behavior Association",
       x = "Observed Behavior", y = "Species")
print(Species_Behavior_Heatmap)

ggsave("Species_Behavior_Heatmap.pdf", plot = Species_Behavior_Heatmap, width = 10, height = 8, dpi = 300)

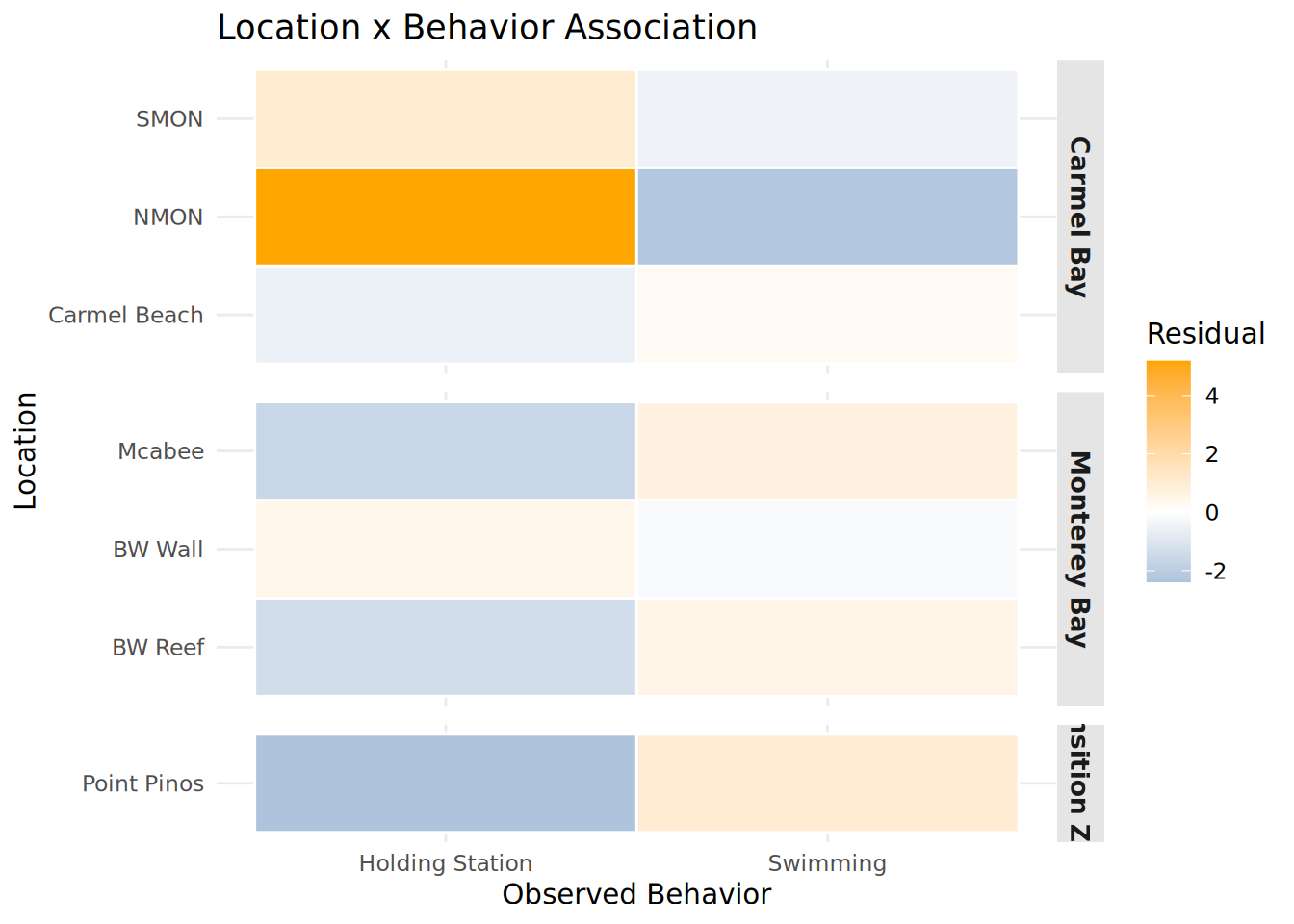

Location x Behavior Heatmap

Location_Behavior_Heatmap <- chisq_location$residuals %>%
  as.data.frame() %>%
  rownames_to_column("Location") %>%
  pivot_longer(-Location, names_to = "Observed_Behavior", values_to = "Residual") %>%
  left_join(
    Fish_Cleaned_3 %>% distinct(Location, Region),
    by = "Location"
  ) %>%
  mutate(
    Location = str_replace_all(Location, "_", " "),
    Observed_Behavior = str_replace_all(Observed_Behavior, "_", " "),
    Region = str_replace_all(Region, "_", " ")
  ) %>%
  ggplot(aes(x = Observed_Behavior, y = Location, fill = Residual)) +
  geom_tile(color = "white", linewidth = 0.5) +
  scale_fill_gradient2(low = "steelblue", mid = "white", high = "orange", midpoint = 0) +
  facet_grid(Region ~ ., scales = "free_y", space = "free_y") +
  theme_minimal() +
  theme(
    strip.background = element_rect(fill = "gray90", color = NA),
    strip.text = element_text(face = "bold", size = 10),
    panel.spacing = unit(0.5, "lines")
  ) +
  labs(title = "Location x Behavior Association",
       x = "Observed Behavior", y = "Location")
print(Location_Behavior_Heatmap)

ggsave("Location_Behavior_Heatmap.pdf", plot = Location_Behavior_Heatmap, width = 10, height = 8, dpi = 300)

Adjacent Habitat x Species

habitat_species <- Fish_Cleaned_3 %>%
  count(Species, Adjacent_Habitat) %>%
  pivot_wider(names_from = Adjacent_Habitat, values_from = n, values_fill = 0) %>%
  column_to_rownames("Species")

fisher_habitat_species <- fisher.test(habitat_species, simulate.p.value = TRUE, B = 10000)
print(fisher_habitat_species)

    Fisher's Exact Test for Count Data with simulated p-value (based on
    10000 replicates)

data:  habitat_species
p-value = 9.999e-05
alternative hypothesis: two.sided

Adjacent Habitat x Location

habitat_location <- Fish_Cleaned_3 %>%
  count(Location, Adjacent_Habitat) %>%
  pivot_wider(names_from = Adjacent_Habitat, values_from = n, values_fill = 0) %>%
  column_to_rownames("Location")

fisher_habitat_location <- fisher.test(habitat_location, simulate.p.value = TRUE, B = 10000)
print(fisher_habitat_location)

    Fisher's Exact Test for Count Data with simulated p-value (based on
    10000 replicates)

data:  habitat_location
p-value = 9.999e-05
alternative hypothesis: two.sided

chisq_habitat_species <- chisq.test(habitat_species)

Warning in chisq.test(habitat_species): Chi-squared approximation may be
incorrect

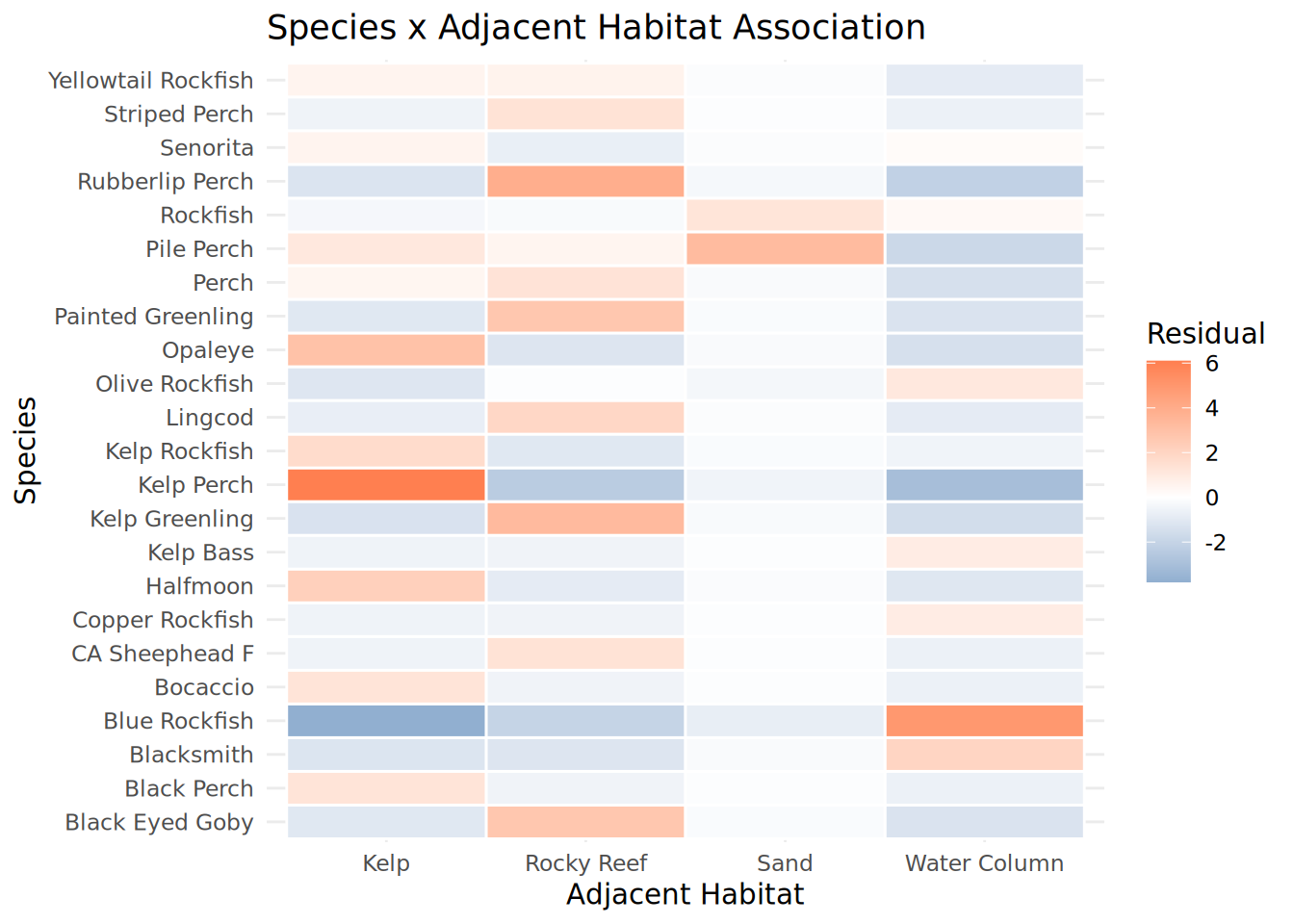

Habitat x Species heatmap

Habitat_Species_Heatmap <- chisq_habitat_species$residuals %>%
  as.data.frame() %>%
  rownames_to_column("Species") %>%
  pivot_longer(-Species, names_to = "Adjacent_Habitat", values_to = "Residual") %>%
  mutate(
    Species = str_replace_all(Species, "_", " "),
    Adjacent_Habitat = str_replace_all(Adjacent_Habitat, "_", " ")
  ) %>%
  ggplot(aes(x = Adjacent_Habitat, y = Species, fill = Residual)) +
  geom_tile(color = "white", linewidth = 0.5) +
  scale_fill_gradient2(low = "steelblue", mid = "white", high = "coral", midpoint = 0) +
  theme_minimal() +
  labs(title = "Species x Adjacent Habitat Association",
       x = "Adjacent Habitat", y = "Species")
print(Habitat_Species_Heatmap)

ggsave("Habitat_Species_Heatmap.pdf", plot = Habitat_Species_Heatmap, width = 10, height = 8, dpi = 300)

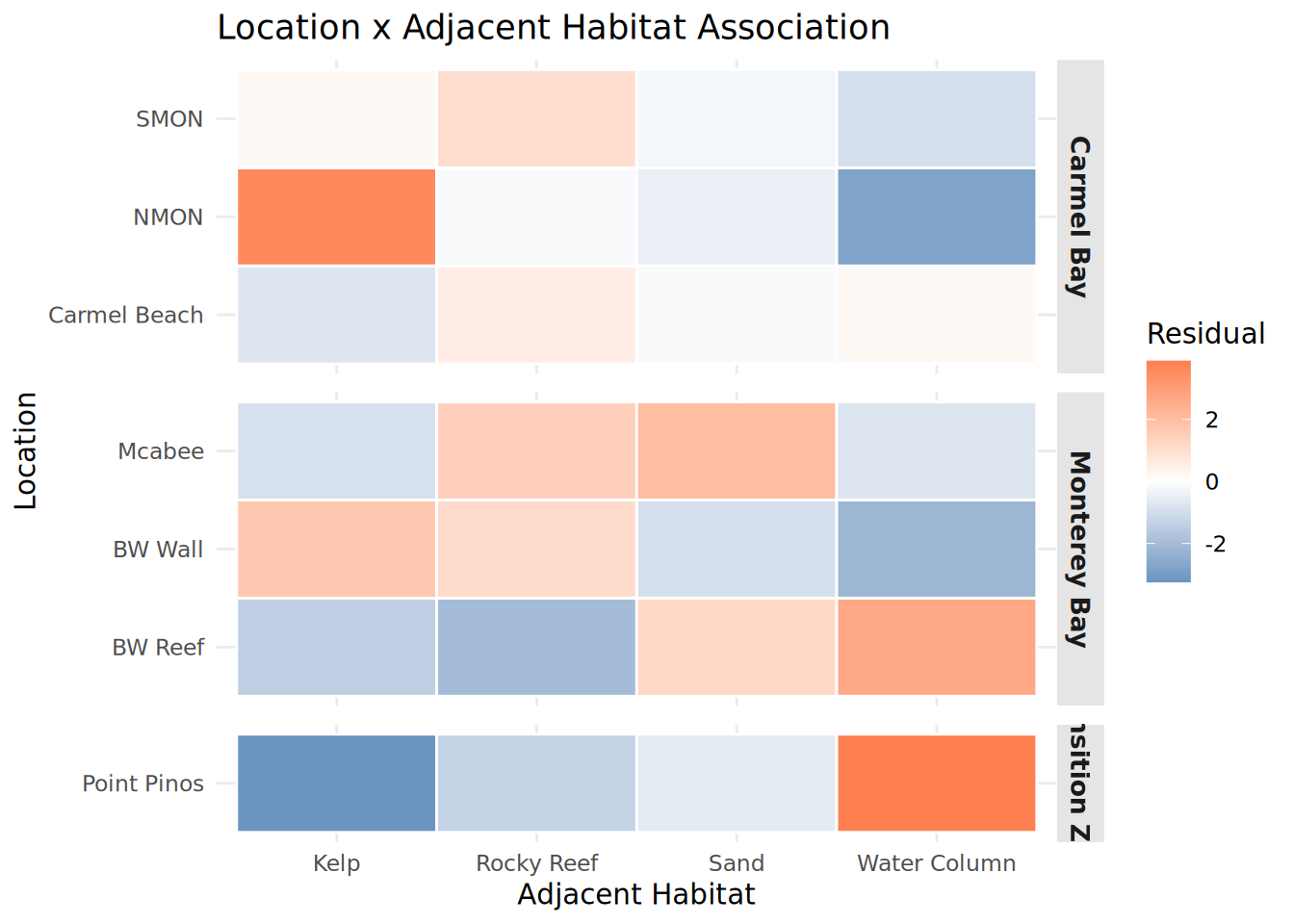

Habitat x Location heatmap

chisq_habitat_location <- chisq.test(habitat_location)

Warning in chisq.test(habitat_location): Chi-squared approximation may be
incorrect

Habitat_Location_Heatmap <- chisq_habitat_location$residuals %>%
  as.data.frame() %>%
  rownames_to_column("Location") %>%
  pivot_longer(-Location, names_to = "Adjacent_Habitat", values_to = "Residual") %>%
  left_join(Fish_Cleaned_3 %>% distinct(Location, Region), by = "Location") %>%
  mutate(
    Location = str_replace_all(Location, "_", " "),
    Adjacent_Habitat = str_replace_all(Adjacent_Habitat, "_", " "),
    Region = str_replace_all(Region, "_", " ")
  ) %>%
  ggplot(aes(x = Adjacent_Habitat, y = Location, fill = Residual)) +
  geom_tile(color = "white", linewidth = 0.5) +
  scale_fill_gradient2(low = "steelblue", mid = "white", high = "coral", midpoint = 0) +
  facet_grid(Region ~ ., scales = "free_y", space = "free_y") +
  theme_minimal() +
  theme(
    strip.background = element_rect(fill = "gray90", color = NA),
    strip.text = element_text(face = "bold", size = 10),
    panel.spacing = unit(0.5, "lines")
  ) +
  labs(title = "Location x Adjacent Habitat Association",
       x = "Adjacent Habitat", y = "Location")
print(Habitat_Location_Heatmap)

ggsave("Habitat_Location_Heatmap.pdf", plot = Habitat_Location_Heatmap, width = 10, height = 8, dpi = 300)

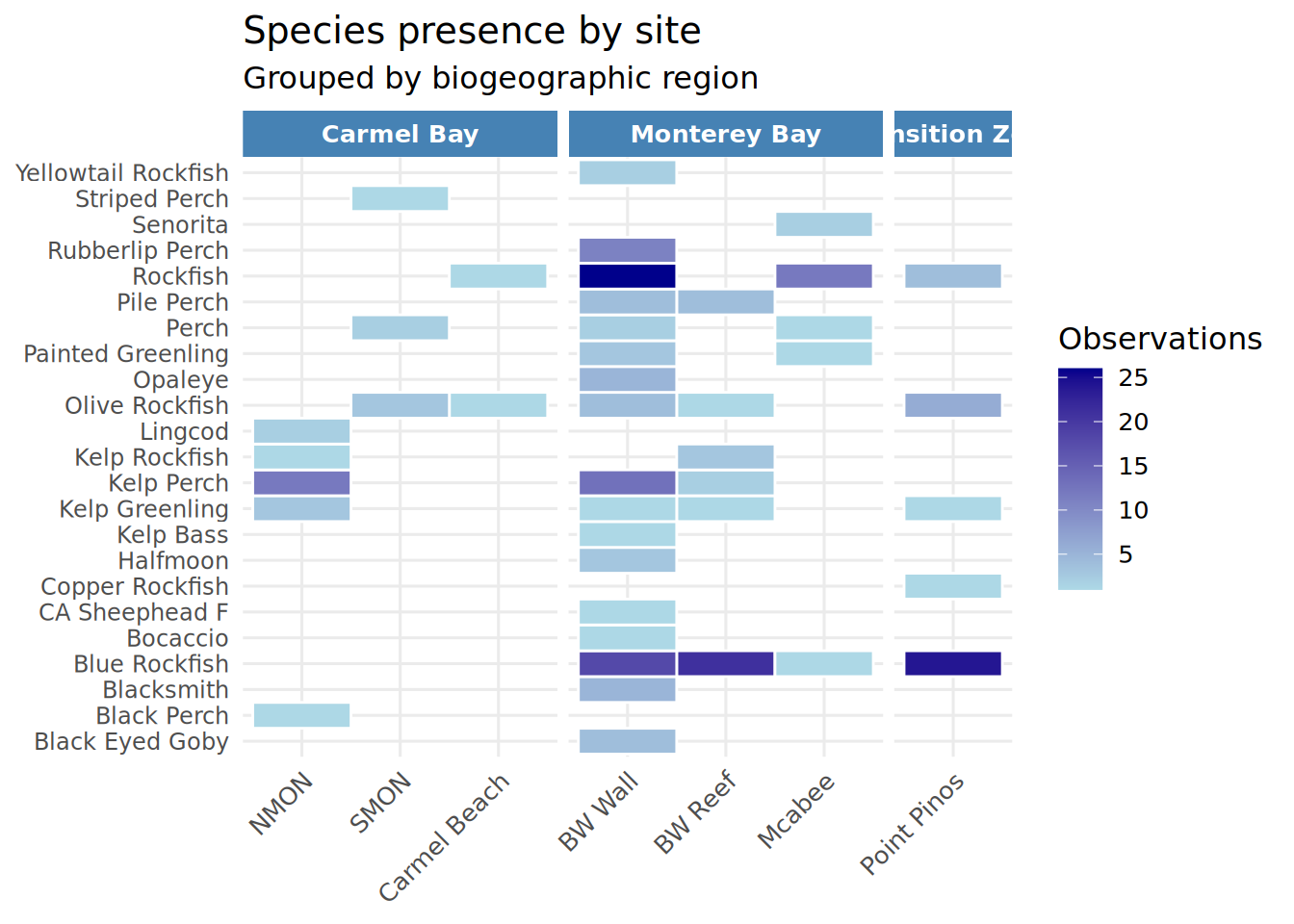

Species by Site Heatmap

site_species <- Fish_Cleaned_2 %>%
  filter(!is.na(Region), !Species %in% c("UFO", "YOY", "OYT_YOY", "KGB_YOY")) %>%
  group_by(Region, Location, Species) %>%
  summarise(count = n(), .groups = "drop") %>%
  mutate(
    Species = recode(Species, "Black_Eyed_Gobeye" = "Black_Eyed_Goby"),
    Species = str_replace_all(Species, "_", " "),
    Location = str_replace_all(Location, "_", " "),
    Region = str_replace_all(Region, "_", " ")
  )

site_species <- site_species %>%
  mutate(Location = factor(Location, levels = c(
    "NMON", "SMON", "Carmel Beach",    # Carmel Bay
    "BW Wall", "BW Reef", "Mcabee",    # Monterey Bay
    "Point Pinos"                       # Transition Zone
  )))

Species_Presence_Heatmap <- ggplot(site_species, aes(x = Location, y = Species, fill = count)) +
  geom_tile(color = "white", linewidth = 0.5) +
  scale_fill_gradient(low = "lightblue", high = "darkblue",
                      name = "Observations") +
  facet_grid(~ Region, scales = "free_x", space = "free_x") +
  theme_minimal(base_size = 12) +
  theme(
    axis.text.x      = element_text(angle = 45, hjust = 1),
    axis.text.y      = element_text(size = 9),
    strip.text       = element_text(face = "bold", color = "white"),
    strip.background = element_rect(fill = c("steelblue", "darkgreen", "orange"), color = NA),
    panel.spacing    = unit(0.3, "lines"),
    legend.position  = "right"
  ) +
  labs(x = NULL, y = NULL,
       title = "Species presence by site",
       subtitle = "Grouped by biogeographic region")
print(Species_Presence_Heatmap)

ggsave("Species_Presence_Heatmap.pdf", plot = Species_Presence_Heatmap, width = 10, height = 8, dpi = 300)

Density of Fish per site

transect_area_m2 <- 120

density_df <- Fish_Cleaned_3 %>%
  group_by(Location, Region) %>%
  summarise(total_fish = n(), .groups = "drop") %>%
  mutate(
    density = total_fish / transect_area_m2,
    Location = str_replace_all(Location, "_", " "),
    Region = str_replace_all(Region, "_", " ")
  ) %>%
  mutate(
    Location = factor(Location, levels = c(
      "BW Wall", "BW Reef", "Mcabee",          # Monterey Bay
      "Point Pinos",                             # Transition Zone
      "SMON", "NMON", "Carmel Beach"            # Carmel Bay
    )),
    Region = factor(Region, levels = c("Monterey Bay", "Transition Zone", "Carmel Bay"))
  )
print(density_df)

# A tibble: 7 × 4
  Location     Region          total_fish density
  <fct>        <fct>                <int>   <dbl>
1 BW Reef      Monterey Bay            32  0.267
2 BW Wall      Monterey Bay            90  0.75
3 Carmel Beach Carmel Bay               2  0.0167
4 Mcabee       Monterey Bay            17  0.142
5 NMON         Carmel Bay              19  0.158
6 Point Pinos  Transition Zone         36  0.3
7 SMON         Carmel Bay               6  0.05

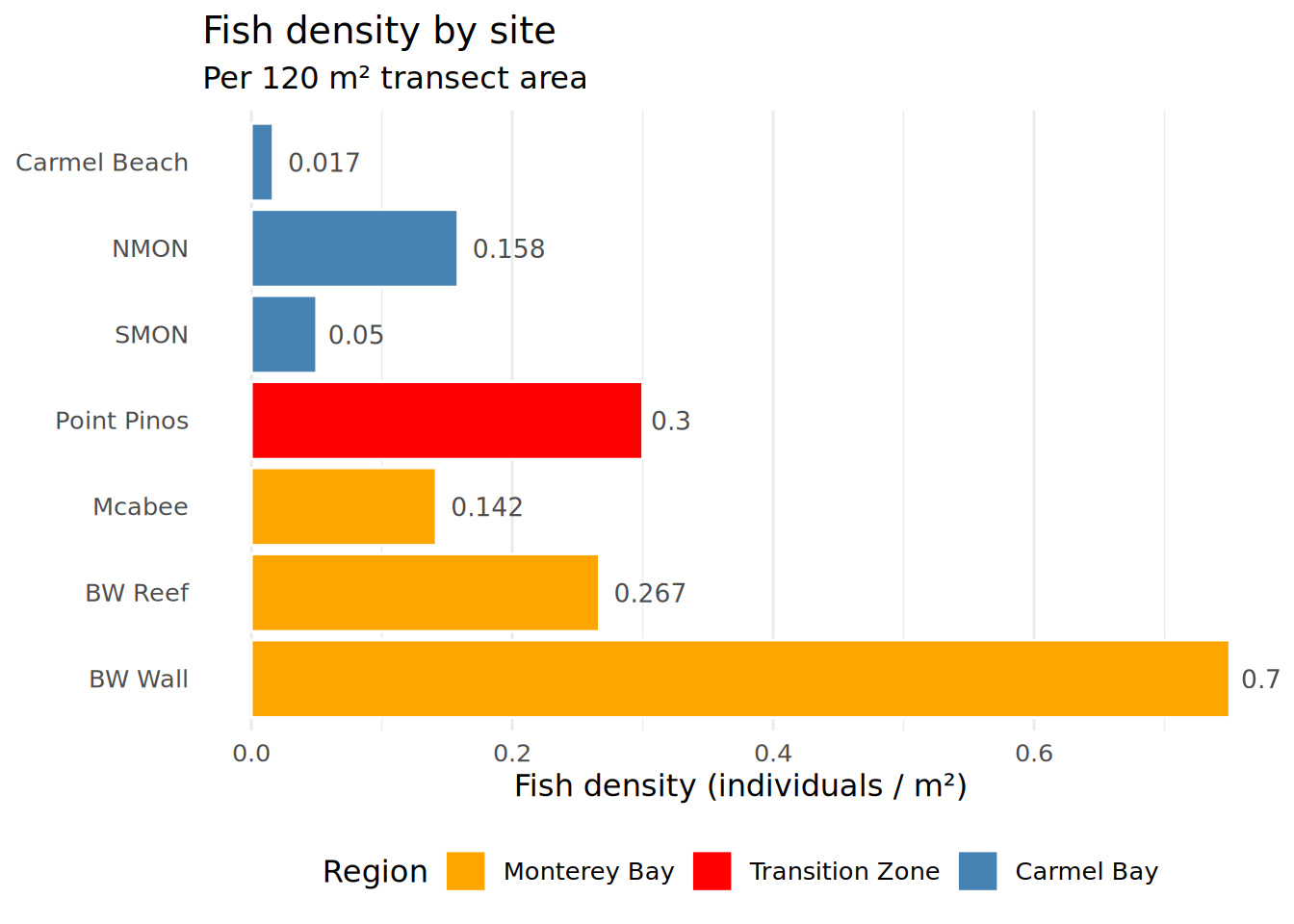

Density By Site

Density_Heatmap <- ggplot(density_df, aes(x = Location, y = density, fill = Region)) +
  geom_col(color = "white", linewidth = 0.5) +
  geom_text(aes(label = round(density, 3)),
            hjust = -0.2, size = 3.5, color = "gray30") +
  coord_flip() +
  scale_fill_manual(values = c(
    "Carmel Bay"      = "steelblue",
    "Monterey Bay"    = "orange",
    "Transition Zone" = "red"
  )) +
  theme_minimal(base_size = 12) +
  theme(
    legend.position = "bottom",
    panel.grid.major.y = element_blank()
  ) +
  labs(
    title = "Fish density by site",
    subtitle = paste("Per", transect_area_m2, "m² transect area"),
    x = NULL,
    y = "Fish density (individuals / m²)"
  )
print(Density_Heatmap)

ggsave("Density_Heatmap.pdf", plot = Density_Heatmap, width = 10, height = 8, dpi = 300)

Define SoCal VS. NorCal

unique(Fish_Cleaned_2$Species)

 [1] "Bocaccio"            "Blue_Rockfish"       "Pile_Perch"
 [4] "Rockfish"            "Olive_Rockfish"      "Perch"
 [7] "Kelp_Perch"          "Painted_Greenling"   "Yellowtail_Rockfish"
[10] "Kelp_Greenling"      "Rubberlip_Perch"     "Kelp_Bass"
[13] "CA_Sheephead_F"      "Black_Eyed_Gobeye"   "Halfmoon"
[16] "Opaleye"             "Blacksmith"          "Kelp_Rockfish"
[19] "Lingcod"             "Black_Perch"         "Striped_Perch"
[22] "Senorita"            "Copper_Rockfish"

# Define SoCal and NorCal species using exact names from dataset
socal_species <- c("Senorita", "CA_Sheephead_F", "Halfmoon",
                   "Opaleye", "Kelp_Bass",                            "Blacksmith")

norcal_species <- c("Blue_Rockfish", "Pile_Perch", "Olive_Rockfish", "Kelp_Perch",
                    "Painted_Greenling", "Yellowtail_Rockfish", "Kelp_Greenling",
                    "Rubberlip_Perch", "Black_Eyed_Goby", "Lingcod",
                    "Striped_Perch", "Copper_Rockfish", "Bocaccio", "Black_Perch", "Kelp_Rockfish")

# Filter out ambiguous IDs and classify
Fish_Classified <- Fish_Cleaned_3 %>%
  filter(!Species %in% c("YOY", "Rockfish", "Perch", "KGB_YOY", "OYT_YOY", "UFO")) %>%
  mutate(Bioregion = case_when(
    Species %in% socal_species  ~ "Southern CA",
    Species %in% norcal_species ~ "Northern CA",
    TRUE ~ NA_character_
  ))

NMDS Plot

Build site x species matrix from classified fish

nmds_matrix <- Fish_Classified %>%
  group_by(Location, Species) %>%
  summarise(count = n(), .groups = "drop") %>%
  pivot_wider(names_from = Species, values_from = count, values_fill = 0) %>%
  column_to_rownames("Location")

Run NMDS

set.seed(123)
nmds <- metaMDS(nmds_matrix, distance = "bray", k = 2, trymax = 100)

Wisconsin double standardization
Run 0 stress 0.01444524
Run 1 stress 0.01795352
Run 2 stress 0.01793297
Run 3 stress 0.1554385
Run 4 stress 0.01765041
Run 5 stress 0.08845064
Run 6 stress 0.1658275
Run 7 stress 0.01787595
Run 8 stress 0.01793602
Run 9 stress 0.2290535
Run 10 stress 0.1762696
Run 11 stress 0.01444529
... Procrustes: rmse 0.05208539  max resid 0.09863131
Run 12 stress 0.0176329
Run 13 stress 0.01778886
Run 14 stress 0.08845064
Run 15 stress 0.01794904
Run 16 stress 0.017626
Run 17 stress 0.01767061
Run 18 stress 0.01481446
... Procrustes: rmse 0.06027475  max resid 0.1115534
Run 19 stress 0.1650292
Run 20 stress 0.01444526
... Procrustes: rmse 0.05205945  max resid 0.09859884
Run 21 stress 0.01444524
... Procrustes: rmse 1.730354e-05  max resid 2.641844e-05
... Similar to previous best
*** Best solution repeated 1 times

Warning in postMDS(out$points, dis, plot = max(0, plot - 1), ...): skipping
half-change scaling: too few points below threshold

print(nmds)  # check stress score

Call:
metaMDS(comm = nmds_matrix, distance = "bray", k = 2, trymax = 100)

global Multidimensional Scaling using monoMDS

Data:     wisconsin(nmds_matrix)
Distance: bray

Dimensions: 2
Stress:     0.01444524
Stress type 1, weak ties
Best solution was repeated 1 time in 21 tries
The best solution was from try 0 (metric scaling or null solution)
Scaling: centring, PC rotation
Species: expanded scores based on 'wisconsin(nmds_matrix)'

Extract site scores and join Region + SoCal proportion

site_scores <- as.data.frame(scores(nmds, display = "sites")) %>%
  rownames_to_column("Location") %>%
  left_join(Fish_Classified %>% distinct(Location, Region), by = "Location") %>%
  left_join(
    Fish_Classified %>%
      group_by(Location) %>%
      summarise(
        prop_socal = mean(Bioregion == "Southern CA"),
        .groups = "drop"
      ),
    by = "Location"
  ) %>%
  mutate(
    Location = str_replace_all(Location, "_", " "),
    Region = str_replace_all(Region, "_", " ")
  )

Extract species scores

species_scores <- as.data.frame(scores(nmds, display = "species")) %>%
  rownames_to_column("Species") %>%
  left_join(
    data.frame(
      Species = c(socal_species, norcal_species),
      Bioregion = c(rep("Southern CA", length(socal_species)),
                    rep("Northern CA", length(norcal_species)))
    ),
    by = "Species"
  ) %>%
  mutate(Species = str_replace_all(Species, "_", " "))

Fit SoCal proportion as environmental vector

socal_vector <- Fish_Classified %>%
  group_by(Location) %>%
  summarise(prop_socal = mean(Bioregion == "Southern CA"), .groups = "drop") %>%
  column_to_rownames("Location")

env_fit <- envfit(nmds, socal_vector, permutations = 999, na.rm = TRUE)

Set of permutations < 'minperm'. Generating entire set.
Set of permutations < 'minperm'. Generating entire set.

print(env_fit)  # check significance of vector

***VECTORS

              NMDS1    NMDS2     r2 Pr(>r)
prop_socal -0.48930 -0.87212 0.9559  0.025 *
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Permutation: free
Number of permutations: 5039

Extract vector coordinates for plotting

vector_df <- as.data.frame(scores(env_fit, display = "vectors")) %>%
  rownames_to_column("Variable") %>%
  mutate(Variable = "SoCal Proportion")

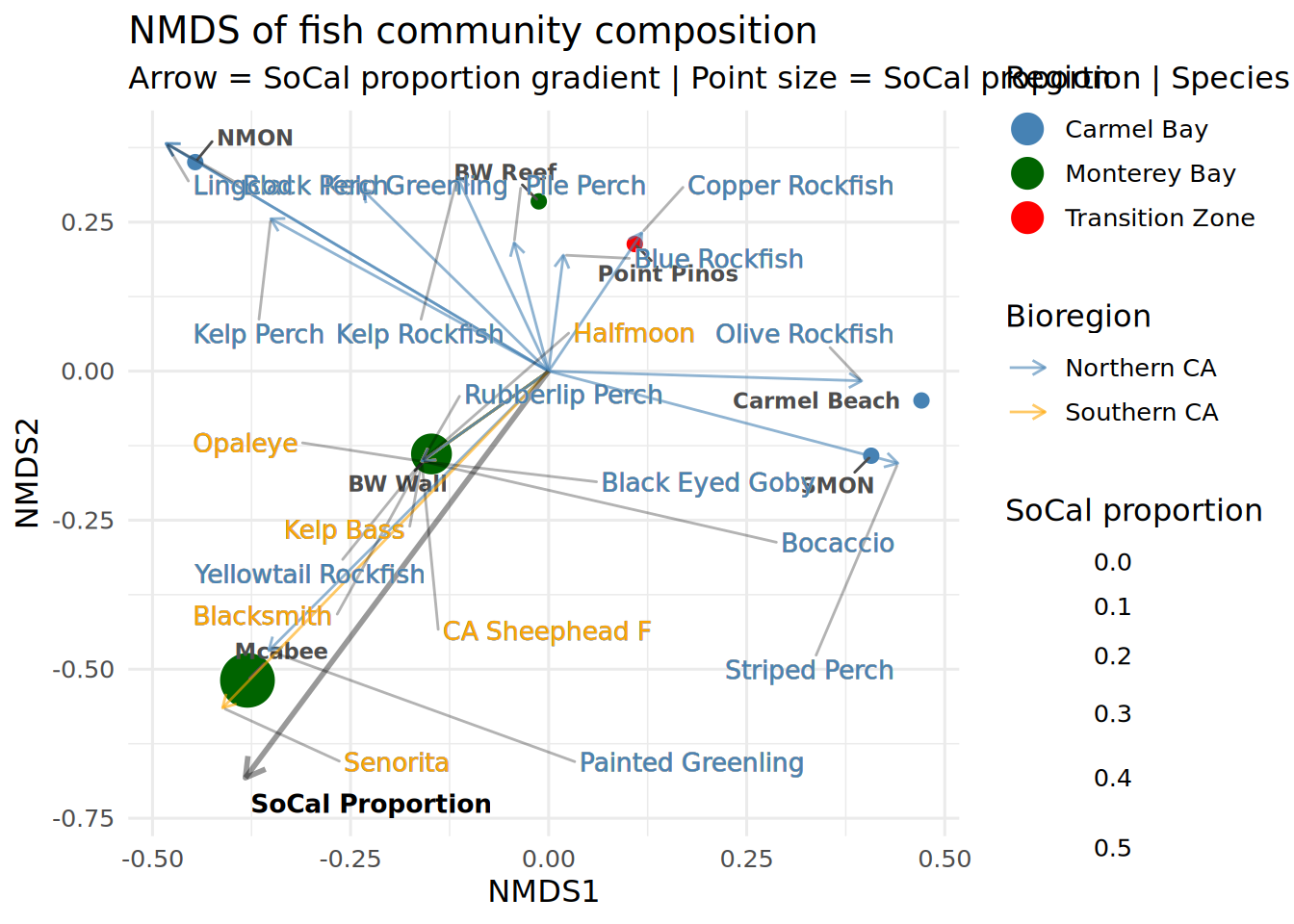

NMDS Plot

nmds_plot <- ggplot() +
  geom_point(data = site_scores,
             aes(x = NMDS1, y = NMDS2, fill = Region, size = prop_socal),
             shape = 21, color = "white", stroke = 0.5) +
  geom_text_repel(data = site_scores,
                  aes(x = NMDS1, y = NMDS2, label = Location),
                  size = 3,fontface = "bold", color = "gray30", max.overlaps = 20,
                  box.padding = 0.5) +
  geom_segment(data = species_scores,
               aes(x = 0, y = 0, xend = NMDS1, yend = NMDS2, color = Bioregion),
               arrow = arrow(length = unit(0.2, "cm")), linewidth = 0.5, alpha = 0.6) +
  geom_segment(data = vector_df,
               aes(x = 0, y = 0, xend = NMDS1 * 0.8, yend = NMDS2 * 0.8),
               arrow = arrow(length = unit(0.3, "cm")),
               color = "black", linewidth = 1, alpha = 0.4) +
  geom_text(data = vector_df,
            aes(x = NMDS1 * 0.85, y = NMDS2 * 0.85, label = Variable),
            size = 3.5, fontface = "bold", hjust = -0.1) +
  geom_text_repel(data = species_scores,
                aes(x = NMDS1, y = NMDS2, label = Species, color = Bioregion),
                size = 3.5, max.overlaps = 20,
                box.padding = 1.75, segment.alpha = 0.3,
                segment.color = "black",
                force = 3,
                bg.color = "darkgrey", bg.r = 0.01,
                show.legend = FALSE) +
  scale_fill_manual(values = c(
    "Carmel Bay"      = "steelblue",
    "Monterey Bay"    = "darkgreen",
    "Transition Zone" = "red"
  )) +
  scale_color_manual(values = c(
    "Southern CA" = "orange",
    "Northern CA" = "steelblue"
  )) +
  scale_size_continuous(name = "SoCal proportion", range = c(3, 10)) +
  theme_minimal(base_size = 12) +
  guides(
  fill = guide_legend(override.aes = list(size = 6)),
  size = guide_legend(title = "SoCal proportion"),
  color = guide_legend(override.aes = list(size = 4))
) +
  theme(legend.position = "right") +
  labs(
    title = "NMDS of fish community composition",
    subtitle = "Arrow = SoCal proportion gradient | Point size = SoCal proportion | Species colored by bioregion",
    x = "NMDS1", y = "NMDS2",
    fill = "Region", color = "Bioregion"
  )
print(nmds_plot)

ggsave("nmds_plot.pdf", plot = nmds_plot, width = 10, height = 8, dpi = 300)

Building proportion data

diverging_df <- Fish_Classified %>%
  group_by(Location, Region) %>%
  summarise(
    prop_socal = mean(Bioregion == "Southern CA"),
    prop_norcal = mean(Bioregion == "Northern CA"),
    .groups = "drop"
  ) %>%
  pivot_longer(cols = c(prop_socal, prop_norcal),
               names_to = "Bioregion",
               values_to = "Proportion") %>%
  mutate(
    Proportion = ifelse(Bioregion == "prop_norcal", -Proportion, Proportion),
    Bioregion = recode(Bioregion,
                       "prop_socal" = "Southern CA",
                       "prop_norcal" = "Northern CA"),
    Location = str_replace_all(Location, "_", " "),
    Region = str_replace_all(Region, "_", " "),
    Location = factor(Location, levels = c(
      "NMON", "SMON", "Carmel Beach",
      "BW Wall", "BW Reef", "Mcabee",
      "Point Pinos"
    ))
  )

Diverging Bar Chart

Socal_Norcal_Barchart <- ggplot(diverging_df, aes(x = Location, y = Proportion, fill = Bioregion)) +
  geom_col(color = "white", linewidth = 0.5) +
  geom_hline(yintercept = 0, linewidth = 0.8, color = "gray20") +
  scale_fill_manual(values = c(
    "Southern CA" = "orange",
    "Northern CA" = "steelblue"
  )) +
  scale_y_continuous(
    labels = function(x) paste0(abs(x) * 100, "%"),
    limits = c(-1, 1)
  ) +
  facet_grid(~ Region, scales = "free_x", space = "free_x") +
  coord_flip() +
  theme_minimal(base_size = 12) +
  theme(
    strip.background = element_rect(fill = "gray90", color = NA),
    strip.text = element_text(face = "bold", size = 10),
    panel.spacing = unit(0.5, "lines"),
    legend.position = "bottom",
    panel.grid.major.y = element_blank()
  ) +
  labs(
    title = "Biogeographic composition by site",
    subtitle = "Proportion of Southern CA vs Northern CA species",
    x = NULL,
    y = "Proportion",
    fill = "Bioregion"
  )
print(Socal_Norcal_Barchart)

ggsave("Socal_Norcal_Barchart.pdf", plot = Socal_Norcal_Barchart, width = 10, height = 8, dpi = 300)
